Diablo - Steel Demon Item #F03F013201

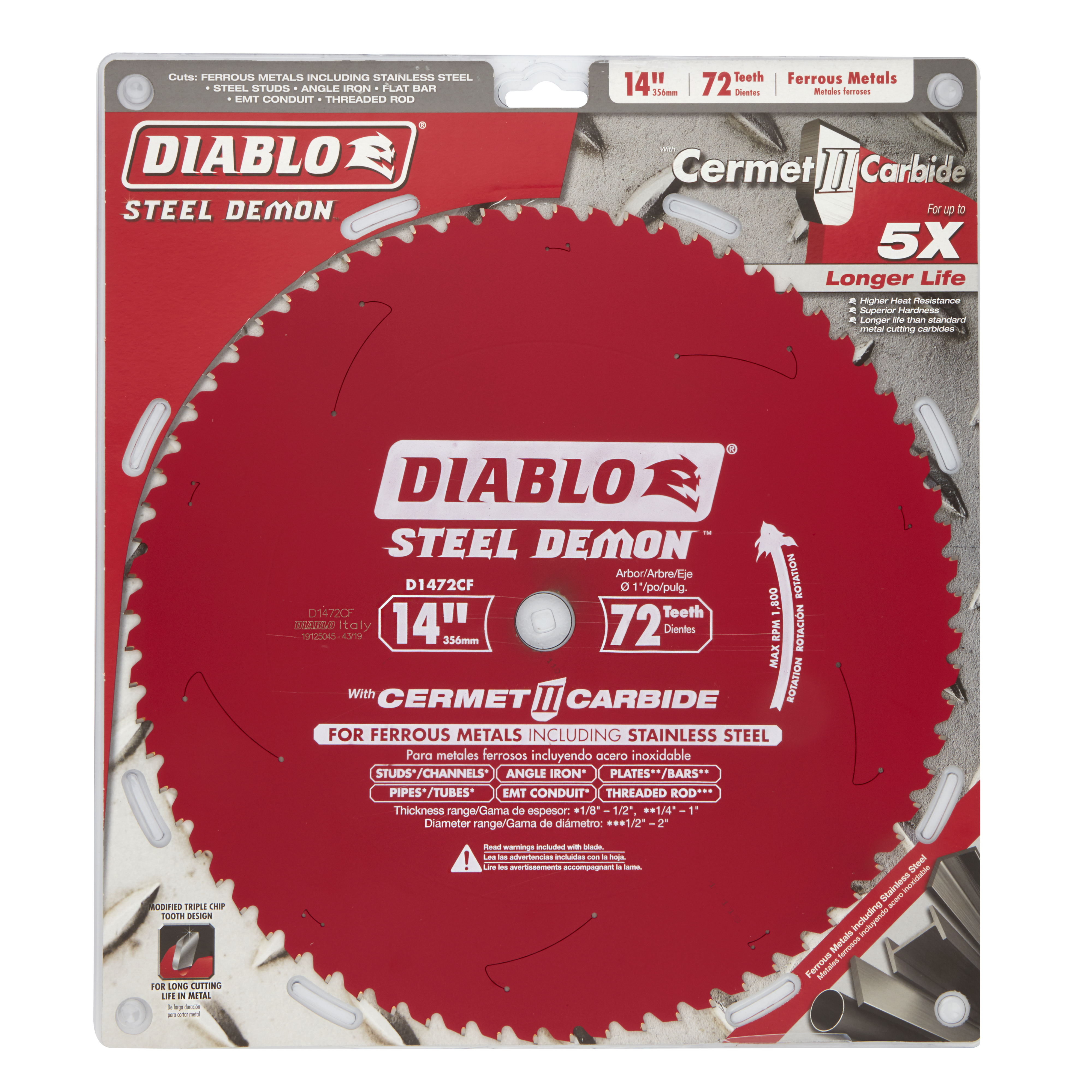

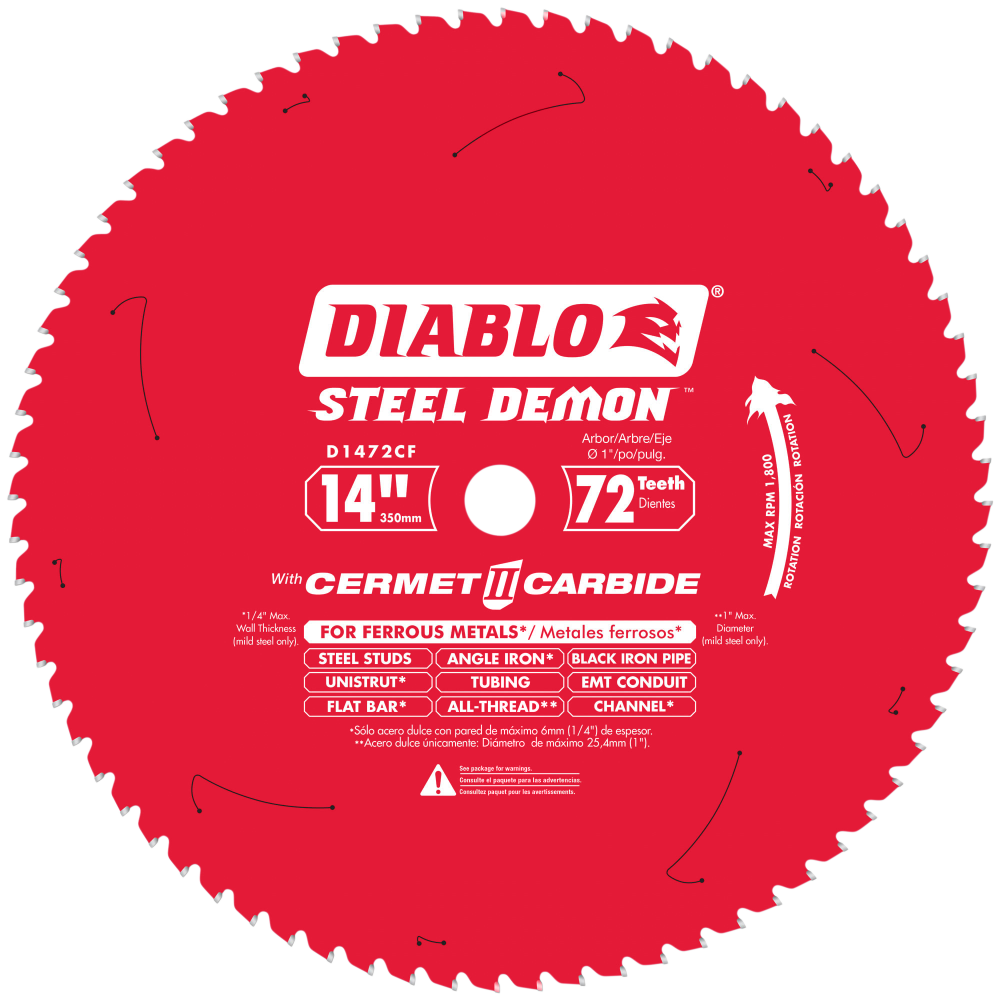

14 in. / 356mm 72T Ferrous Metals STEEL DEMON Saw Blade

14 in. / 356mm 72T Ferrous Metals STEEL DEMON Saw Blade #F03F013201
TOOLS
Low RPM Metal Saw Low RPM Metal Saw
CUTS
Stainless Steel Stainless Steel
Steel Studs Steel Studs
Angle Iron Angle Iron
Threaded Rod Threaded Rod
Item #F03F013201
Diablo - Steel Demon

14 in. / 356mm 72T Ferrous Metals STEEL DEMON Saw Blade

Metal Cutting
  • Cermet (Ceramic and Metallic) teeth provide a high heat tolerance and increased hardness for superior wear and ultimate cutting life; lasting up to 40X longer than standard carbide metal cutting saw blades
  • Triple Chip Tooth design provides less sparks, burr-free finishes that require no-rework, and longer cutting life
  • Advanced Laser Cut Stabilizer Vents trap noise and vibration for maximum stability, keeping the blade cool for straight, accurate cuts in metal cutting applications
  • Tri-Metal Shock Resistant Brazing, a three metal brazing system, allows Cermet teeth to withstand extreme impact for maximum durability
  • Laser Cut Thin Kerf Design provides less resistance and heat build-up for ease of cut, accuracy and long cutting life in metal cutting applications
Where to Buy
More options
Diameter
5.375" / 136mm
6.5" / 165mm
7.25" / 184mm
8.25" / 209mm
10" / 254mm
12" / 305mm
14" / 356mm

Product

Overview

Diablo’s new Steel Demon Cermet saw blade series is redefining metal cutting, and the jobsite, by introducing safer, exclusive innovation that allows users to cut both mild and stainless steels for 40X longer life versus standard carbide-tipped metal cutting saw blades. The specially formulated Cermet (Ceramic and Metallic) teeth provide high heat tolerances and increased hardness for superior wear and ultimate cutting life. Featuring a special Triple Chip Grind and Perma-Shield coating, these blades slice through the toughest of metals to produce precise cuts with less sparks and burr-free finishes that require no rework. The thin-kerf body and advanced laser cut anti-vibration stabilizer vents reduce vibration and noise to allow the blades to quickly shear through metal with ease and accuracy. The ability to cut through both mild and stainless steel eliminates the need for individually dedicated saw blades, offering a one-blade solution for ultimate metal cutting performance and unmatched value story, forever changing the metal cutting industry.

  • Cermet (Ceramic and Metallic) teeth provide a high heat tolerance and increased hardness for superior wear and ultimate cutting life; lasting up to 40X longer than standard carbide metal cutting saw blades
  • Triple Chip Tooth design provides less sparks, burr-free finishes that require no-rework, and longer cutting life
  • Advanced Laser Cut Stabilizer Vents trap noise and vibration for maximum stability, keeping the blade cool for straight, accurate cuts in metal cutting applications
  • Tri-Metal Shock Resistant Brazing, a three metal brazing system, allows Cermet teeth to withstand extreme impact for maximum durability
  • Laser Cut Thin Kerf Design provides less resistance and heat build-up for ease of cut, accuracy and long cutting life in metal cutting applications
Ideal For: Studs & Tubing (Wall thickness 1/8" (11 gauge) min 1/2" max); Plates & Bars (Thickness 1/4" (11 gauge) min 1" max); RODS (Diameter 1/2" min 2" max) - Steel Studs, Angle Iron, Black Iron Pipe, Unistrut, Tubing, EMT Conduit, Flat Bar, All-Thread, Channel
Suggested Projects: Metalworking

Technical

Specifications

  • Diameter 14" / 356mm
  • HookAngle
  • Kerf 2.1
  • Plate 1.8
  • Teeth 72
  • Application Metal Cutting
  • Bushings None
  • Arbor 25.4mm
  • Item # F03F013201
  • Barcode 8925130628
  • Short Code D1472CF

Downloads

Chipper Set-Up & Configuration Guide
